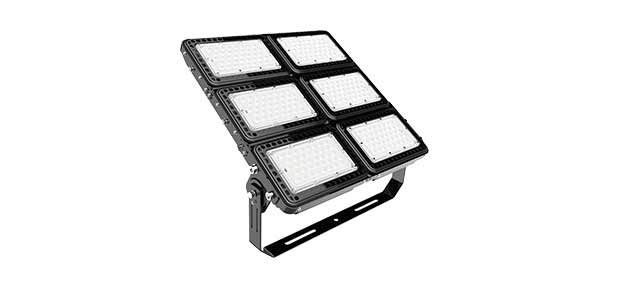

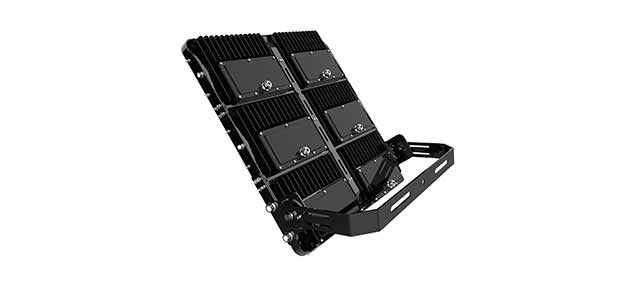

WX-FG-HM Series
WX-FG-HM Series

WX-FG-HM Series

Parameter Size Package

Model WX-FG-HM-400W WX-FG-HM-600W WX-FG-HM-800W WX-FG-HM-1000W
LED Source SMD 3030 SMD 3030 SMD 3030 SMD 3030
Lamp Size 625*503*125.3mm 625*704*125.3mm 625*905*125.3mm 625*1106*125.3mm
Total system power 400W 600W 800W 1000W
LED Luminous Efficiency 140lm/w 140lm/w 140lm/w 140lm/w
Initial Luminous Flux 56000LM 84000LM 112000LM 140000LM
Color Temperature 3000K-6500K 3000K-6500K 3000K-6500K 3000K-6500K
Color Rendering Index RA>75 RA>75 RA>75 RA>75
IP Rating IP65 IP65 IP65 IP65
Beam Angle 15/30° 15/30° 15/30° 15/30°
Life Span >50000 hours >50000 hours >50000 hours >50000 hours
Warranty 5 Years 5 Years 5 Years 5 Years

Model WX-FG-HM-400W WX-FG-HM-600W WX-FG-HM-800W WX-FG-HM-1000W
Lamp packing size 685*535*150mm 1PCS/CTN 685*735*150mm 1PCS/CTN 685*935*150mm 1PCS/CTN 685*1135*150mm 1PCS/CTN
Lamp body net weight 10.7KG/PCS 14.8KG/PCS 19.1KG/PCS 23.4KG/PCS
Lamp body gross weight 11.5KG/CTN 16.0KG/CTN 20.6KG/CTN 24.6KG/CTN
